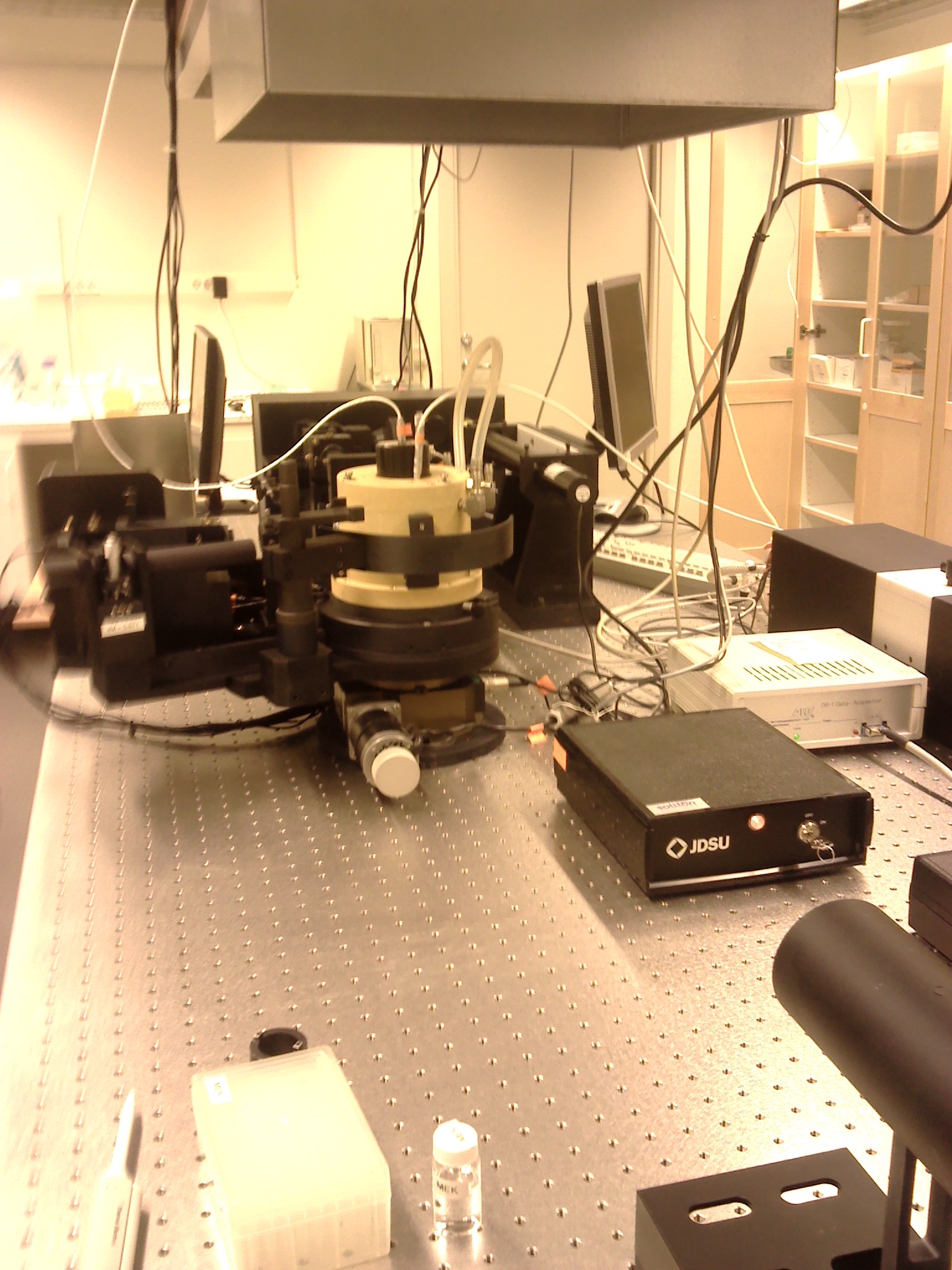

Laser light scattering goniometer system from the ALV Gmbh, Langen, Germany, is a measuring system for simultaneous angular dependent determination of DLS and SLS. The CGF-8F compact based system includes CW Helium-Neon (He-Ne) gas laser (632.8 nm with a output of 22 mW), laser beam focusing optics including a laser beam attenuator and a Glan laser polarizer prism, a goniometer with a rotary table with the angular range of about 20° to 145°, a cell housing with an cylindrical quartz vat (filled with a refractive-index matching liquid, toluene), a fiber optical near-monomodal detection system (with a possible depolarized light detection), a detection unit comprises of two matched avalanche photodiodes that is put in a pseudo-cross correlation arrangement. For the DLS measurements using photon correlation spectroscopy, the latest ALV-7004 multiple tau digital correlator is utilized to produce the time pseudo-cross correlation function of the scattered intensity. It has an initial real sampling time of 25 ns and a lag time range that extends from 25 ns to up to 54975.6 s, which makes it possible to detect particle sizes from 1 nm up to about 5000 nm. The temperature range of the vat is –12 °C to +140 °C (if the refractive index matched liquid changed) and is controlled to ± 0.01 °C by a F32 Julabo heating circulator. In addition, also included in the overall set-up, is a differential refractometer with one He-Ne laser from ALV for the determination of refractive index increments necessary for the SLS experiments.

Serial Number 82
